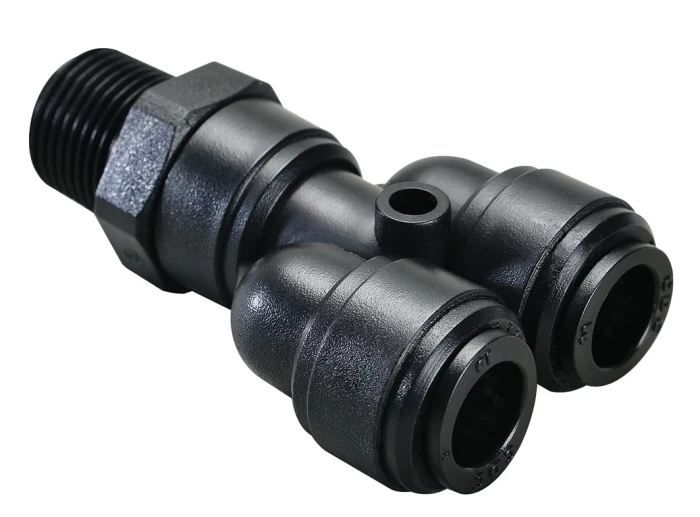

SWIVEL MALE Y BSPT(R) THREAD R3/8 , TUBE SIZE OD10, BLACK - HRWT10R03B

Product Type: Swivel Y-connector with threaded base end
Connection Dimensions: BSPT (R/RP) R3/8 thread, Ø10 mm outer tube diameter
Color: Black
Material: High-quality plastic
Connection Mechanism: Push-to-connect for the tube, threaded for the base
Operating Pressure: Up to 150 PSI
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic networks, desalination setups, industrial systems

Code: 01.00272

Availability: Available

4.12€

/ Item

Wishlist

Compare products

Description

The HRWT10R03B swivel Y-connector with a threaded base end is designed for connecting tubes with an outer diameter of Ø10 mm and a BSPT (R/RP) R3/8 thread. Its swivel design ensures flexible installation, making it ideal for setups requiring directional adjustments.

Made from high-quality plastic, it provides durability and reliability for long-term use. The Push-to-connect mechanism allows for quick and secure tube connections, while the BSPT R3/8 thread ensures a stable and secure base attachment.

With an operating pressure of up to 150 PSI and a temperature range of 0°C to +65°C, this connector is perfect for:

Pneumatic systems
Water treatment setups
Desalination projects
Industrial applications

Features

Temperature:: 0/65 °C

Max Pressure:: 150 psi (10,3 bar)

Connection Type:: Push-to-connect για τον σωλήνα, σπείρωμα για τη βάση

Material:: High-quality plastic

Inlet:: 10 mm

Outlet:: R 3/8"
