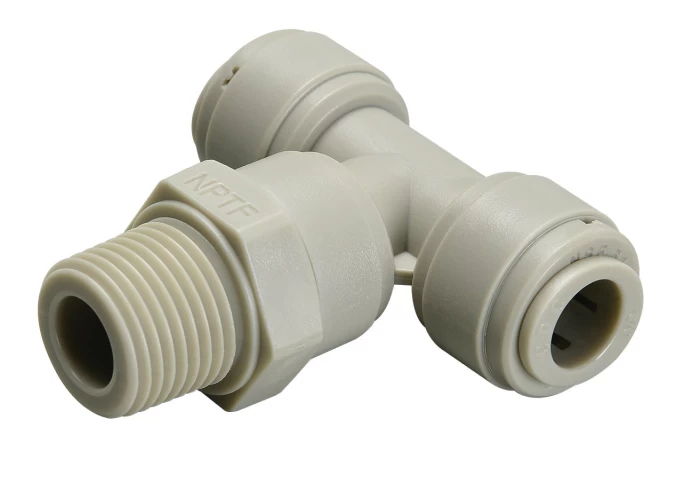

SWIVEL MALE BRANCH TEE BSPT(R) THREAD 1/4 NPT, TUBE SIZE 5/32 - HRPT5/32-N02G

Product Type: Swivel T-connector with base entry
Connection Dimensions: BSPT (R/RP) 1/4 NPT thread, Ø5/32" outer tube diameter
Material: High-quality plastic
Connection Mechanism: Push-to-connect for the tube, threaded for the base
Operating Pressure: Up to 150 PSI
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic networks, desalination setups, industrial systems.

Code: 01.00253

Availability: Available

3.64€

/ Item

Wishlist

Compare products

Description

The HRPT5/32-N02G swivel T-connector with base entry is designed for connecting tubes with an outer diameter of Ø5/32" and a BSPT (R/RP) 1/4 NPT thread. The swivel design allows for flexible and convenient installation, particularly in tight spaces.

Made from high-quality plastic, this connector ensures durability and reliability under demanding conditions. The Push-to-connect mechanism offers quick and secure tube connections, while the BSPT 1/4 NPT thread ensures a stable and secure attachment to the base. Operating under pressures up to 150 PSI and temperatures ranging from 0°C to +65°C, this connector is ideal for pneumatic systems, water treatment setups, desalination projects, and industrial applications.

Features

Temperature:: 0/65 °C

Max Pressure:: 150 psi (10,3 bar)

Connection Type:: Push-to-connect για τον σωλήνα, σπείρωμα για τη βάση

Material:: High-quality plastic

Inlet:: 5/32"

Outlet:: 1/4" NPT
