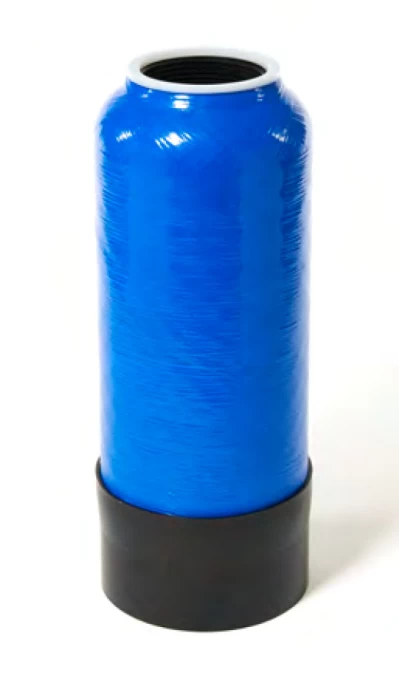

STRUCTURAL PRESSURE VESSEL 12X48 2.5 BLUE - H.S. 84212100

Product Type: Structural Pressure Vessel 12x48 2.5'' blue
Capacity: 76 liters
Material: Fiberglass reinforced with epoxy resin
External Diameter: 304 mm
Connection: 2.5"
Maximum Operating Pressure: 10 bar
Temperature Range: Up to 50°C
Applications: Industrial and potable water treatment systems.

Code: 02.00002

Availability: Available

100.03€

/ Item

Wishlist

Compare products

Description

The 12x48 2.5'' blue Structural Pressure Vessel is manufactured in the European Union (Belgium) using high-quality materials reinforced with fiberglass and epoxy resin. With an external diameter of 304 mm and a maximum operating pressure of 10 bar, it ensures durability and performance in demanding applications. Designed for up to 250,000 pressure cycles and capable of withstanding 4 times the maximum operating pressure, it is suitable for industrial and potable water treatment systems. It operates at temperatures up to 50°C and offers reliability for various water treatment installations.

Features

Dimensions:: h 1232mm - Ø 315mm

Capacity:: 76 Lt

Max Pressure:: 10 bar

Connection:: 2½"

Material:: Ενισχυμένο Πλαστικό με Ίνες Υάλου και Εποξική Ρητίνη (FRP)

Outer Diameter:: 304 mm

Max Temperature:: 50°C
