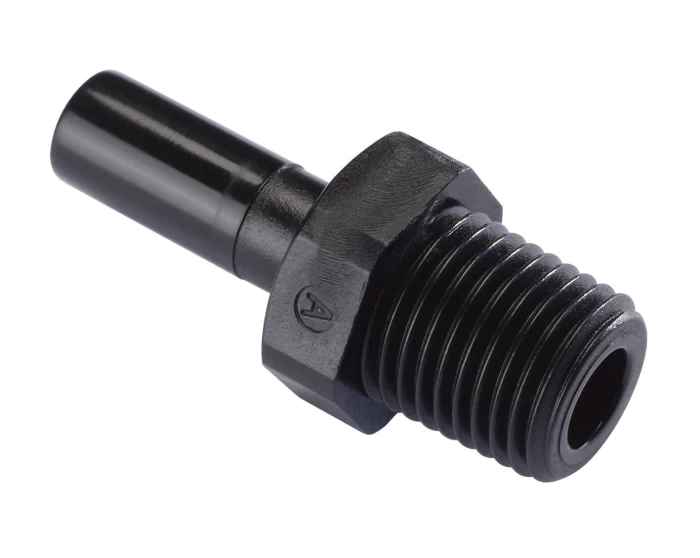

STEM ADAPTER BSPT(R) THREAD R3/8 , TUBE SIZE OD10, BLACK - HCJ10R03B

Product Type: Tube end connector
Tube Connection Dimensions: Ø10 mm (outer tube diameter)
Thread Type: BSPT (R) R3/8
Material: High-quality plastic
Connection Mechanism: Push-to-connect for the tube, threaded base connection
Operating Pressure: Up to 150 PSI
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, desalination systems, pneumatic networks, industrial systems.

Code: 01.00133

Availability: Available

Minimum quantity: 2 items

0.76€

/ Item

Wishlist

Compare products

Description

The HCJ10R03B tube end connector is designed for Ø10 mm tubing connections and features a BSPT (R) R3/8 thread. Made from high-quality plastic, it ensures reliable performance and durability in demanding applications.

The Push-to-connect mechanism for the tube allows for fast and secure installation, while the threaded base connection ensures stability and a tight fit. Operating under pressures up to 150 PSI and temperatures ranging from 0°C to +65°C, this connector is a versatile solution for water treatment systems, desalination setups, pneumatic networks, and industrial environments.

Features

Temperature:: 0/65 °C

Max Pressure:: 150 psi (10,3 bar)

Connection Type:: Push-to-connect για τον σωλήνα, σπείρωμα για τη βάση

Material:: High-quality plastic

Inlet:: 10 mm

Outlet:: R 3/8"
