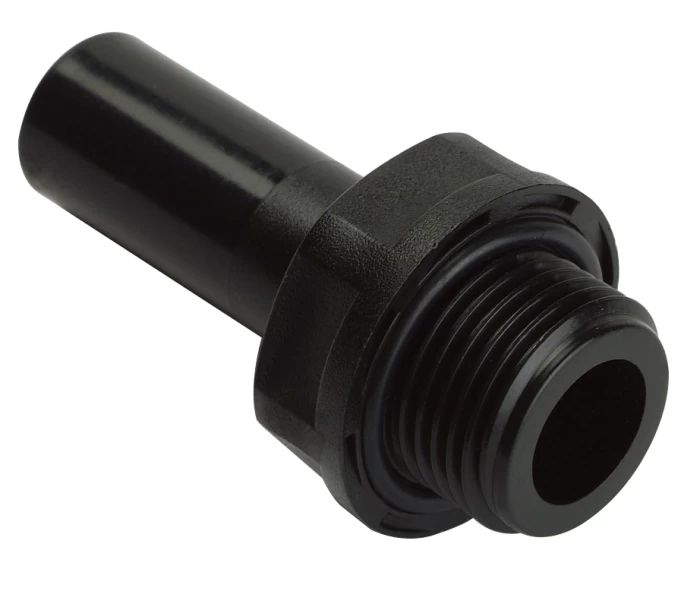

STEM ADAPTER BSPP THREAD G1/4 , TUBE SIZE OD10, BLACK - HCJ10G02B

Product Type: Tube end connector
Tube Connection Dimensions: Ø10 mm (outer tube diameter)
Thread Type: BSPP G1/4
Material: High-quality plastic
Connection Mechanism: Push-to-connect for the tube, threaded base connection
Operating Pressure: Up to 150 PSI
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, desalination systems, pneumatic networks, industrial systems.

Code: 01.00139

Availability: Available

Minimum quantity: 2 items

0.70€

/ Item

Wishlist

Compare products

Description

The HCJ10G02B tube end connector is designed for Ø10 mm tubing connections and features a BSPP G1/4 thread. Made from high-quality plastic, it ensures excellent durability and reliable performance in demanding applications.

The Push-to-connect mechanism for the tube allows for quick and secure installation, while the threaded base connection provides stability and reliability. Supporting pressures up to 150 PSI and temperatures ranging from 0°C to +65°C, this connector is ideal for water treatment systems, desalination setups, pneumatic networks, and industrial environments.

Features

Temperature:: 0/65 °C

Max Pressure:: 150 psi (10,3 bar)

Connection Type:: Push-to-connect για τον σωλήνα, σπείρωμα για τη βάση

Material:: High-quality plastic

Inlet:: 10 mm

Outlet:: G 1/4"
