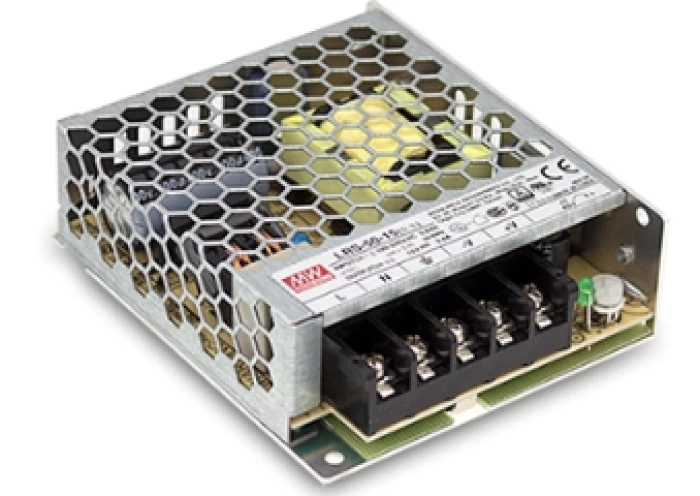

POWER SUPPLY 52.8W/24VDC/2.2A ULTRA MINI LRS-50-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 2.2A
Output Power: 52.8W
Input Voltage Range: 85–264V AC or 120–370V DC
Efficiency: up to 88%
Protections:
- Overload: 110–150% of rated power
- Overvoltage: 28.8–33.6V
- Overtemperature: output shutdown, re-power on to recover
Operating Temperature: -30°C to +70°C
Dimensions: 99 x 97 x 30 mm
Weight: 0.27kg
Certifications: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004
Technical Specs

Code: 07.09457

Availability: Available

16.25€

/ Item

Wishlist

Compare products

Description

The Mean Well LRS-50-24 is an economical, low-profile 52.8W power supply designed for general applications. It provides a 24V DC output voltage and 2.2A current, with a wide input voltage range from 85 to 264V AC or 120 to 370V DC. With efficiency up to 88%, it reduces energy consumption and heat generation. The unit includes overload protection (110–150% of rated power), overvoltage protection (28.8–33.6V), and overtemperature protection, ensuring safe operation. Its compact dimensions (99 x 97 x 30 mm) and weight of 0.27kg allow for easy installation in confined spaces. Certified with UL62368-1, TUV BS EN/EN62368-1, and other international standards, it is ideal for industrial applications and automation systems.

POWER SUPPLY 52.8W/24VDC/2.2A ULTRA MINI LRS-50-24 MEAN WELL
