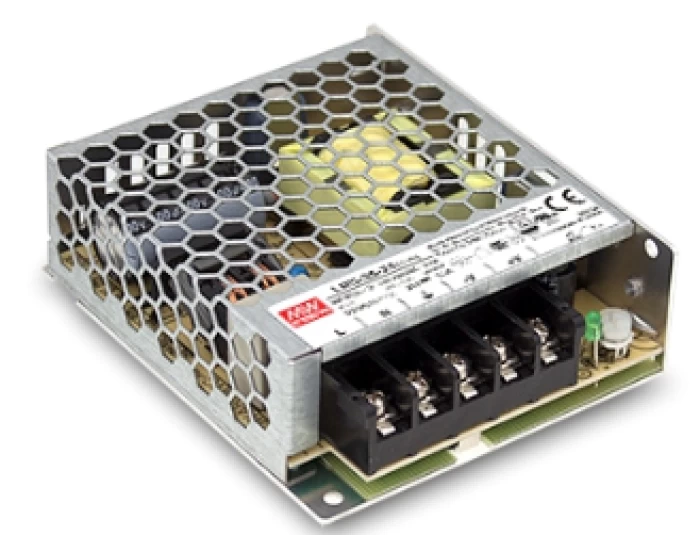

POWER SUPPLY 36W/24VDC/1.5A ULTRA MINI LRS-35-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 1.5A
Output Power: 36W
Input Voltage Range: 85–264V AC or 120–370V DC
Efficiency: up to 88%
Protections:
- Overload: 110–150% of rated power
- Overvoltage: 115–135% of rated output voltage
Operating Temperature: -30°C to +70°C
Dimensions: 99 x 82 x 30 mm
Weight: 290g
Certifications: UL62368-1, IEC/EN62368-1, IEC/EN60335-1, IEC/EN61558-1, EAC TP TC 004
Technical Specs

Code: 07.09455

Availability: Available

14.81€

/ Item

Wishlist

Compare products

Description

The Mean Well LRS-35-24 is an economical, low-profile 36W power supply designed for DIN rail installation. It provides a 24V DC output voltage and 1.5A current, with a wide input voltage range from 85 to 264V AC or 120 to 370V DC. With efficiency up to 88%, it reduces energy consumption and heat generation. The unit includes overload and overvoltage protections, ensuring safe operation. Its compact dimensions (99 x 82 x 30 mm) and weight of 290g allow for easy installation in confined spaces. Certified with UL62368-1, IEC/EN62368-1, and other international standards, it is ideal for industrial applications and automation systems.
