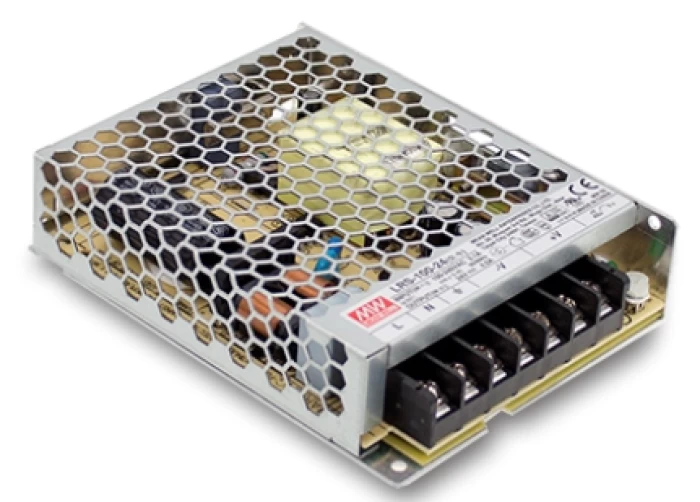

POWER SUPPLY 108W/24VDC/4.5A ULTRA MINI LRS-100-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 4.5A
Output Power: 108W
Input Voltage Range: 85–264V AC or 120–370V DC
Efficiency: up to 90.5%
Protections:
- Overload: 110–150% of rated power
- Overvoltage: 28.8–33.6V
- Overtemperature: output shutdown, re-power on to recover
Operating Temperature: -30°C to +70°C
Dimensions: 129 x 97 x 30 mm
Weight: 0.33kg
Certifications: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004
Technical Specs

Code: 07.09447

Availability: Available

21.27€

/ Item

Wishlist

Compare products

Description

The Mean Well LRS-100-24 is an economical, low-profile 108W power supply designed for general applications. It provides a 24V DC output voltage and 4.5A current, with a wide input voltage range from 85 to 264V AC or 120 to 370V DC. With efficiency up to 90.5%, it reduces energy consumption and heat generation. The unit includes overload protection (110–150% of rated power), overvoltage protection (28.8–33.6V), and overtemperature protection, ensuring safe operation. Its compact dimensions (129 x 97 x 30 mm) and weight of 0.33kg allow for easy installation in confined spaces. Certified with UL62368-1, TUV BS EN/EN62368-1, and other international standards, it is ideal for industrial applications and automation systems.
