MEASURING INSTRUMENT FOR DOSING PUMPS NEXUS 3000 PH/ORP 96X96 24-240 VAC

Monitoring: pH, Rx, Conductivity, Chlorine, Flow
Integrated Relays: 2 (for set point and cleaning function)
Relay Configurations: On/Off, Timed, Proportional
Display: Large digital screen with single-parameter visualization
Operating Voltage: 24–240 VAC

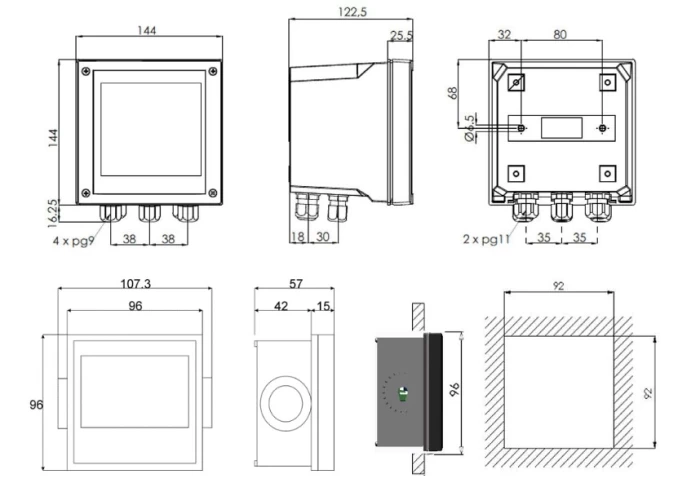

Mounting Options: Wall (144x144 mm), Panel (96x96 mm)

Code: 06.00012

Availability: Available

673.85€

/ Item

Wishlist

Compare products

Description

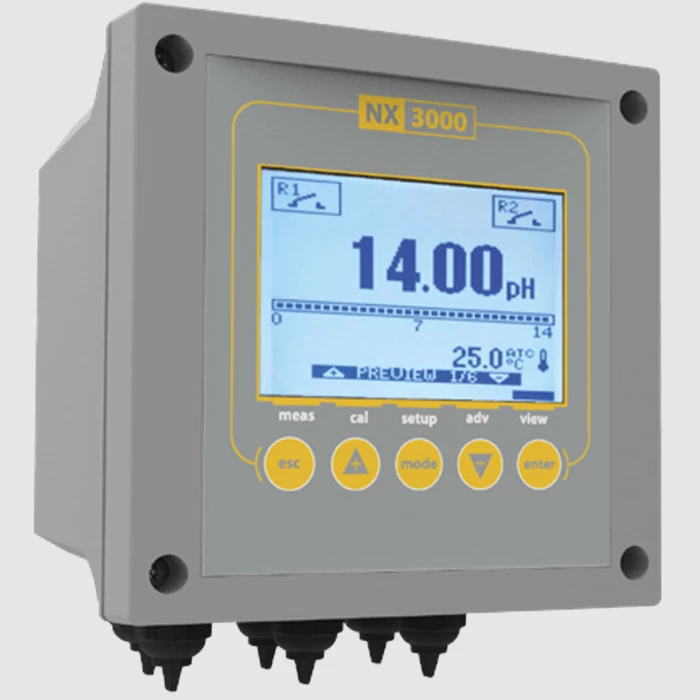

The Nexus 3000 is an advanced measurement and control instrument, ideal for monitoring parameters such as pH, Rx, conductivity, and flow. It features 2 relays for controlling set points, sensor cleaning management, and alarm control. The relays can be configured in three modes: On/Off, timed, and proportional. Its large screen allows easy visualization of a single parameter at a time. Suitable for wall or panel mounting, it offers IP65 protection for the front section, ensuring durability in demanding environments.

Features

Files

Reviews

0 ratings

You must be logged in and have purchased the product to leave a review.

Login
