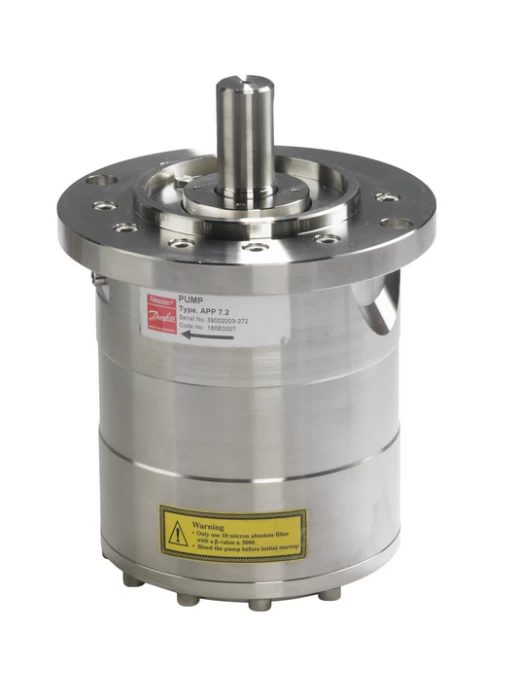

HIGH PRESSURE PUMP DANFOSS APP 7.2 - 180B3007

  • Geometric Displacement: 70.3 cm³/rev
  • Maximum Outlet Pressure: 83 barg (1200 psig)
  • Minimum Outlet Pressure: 20 barg (290 psig)
  • Inlet Pressure: 0.5 - 5 barg (7.3 - 72.5 psig)
  • Maximum Flow (at 1800 RPM): 31.74 gpm (7.22 m³/h)
  • Media Temperature: 2 - 50°C (35.6 - 122°F)
  • Ambient Temperature: 0 - 50°C (32 - 122°F)
  • Sound Pressure Level: 78 dB(A)
Code: 10.00018
Availability: Pre-order
/ Item

Share

Description

The Danfoss APP 7.2 - 180B3007 high-pressure pump is designed to deliver optimal performance and maximum reliability in reverse osmosis (RO) applications. With a geometric displacement of 70.3 cm³/rev, it ensures stable flow and high energy efficiency in demanding operational environments.

Operating at a maximum outlet pressure of 83 barg (1200 psig), this pump meets the needs of advanced desalination and water treatment systems. The inlet pressure ranges from 0.5 to 5 barg, allowing for flexible installation across industrial and marine applications.

Its rugged and durable design enables operation in media temperatures from 2 to 50°C and ambient temperatures from 0 to 50°C, making it suitable for a variety of industries. Additionally, the 78 dB(A) sound pressure level ensures quiet and smooth operation.

With low energy consumption and minimal maintenance requirements, the APP 7.2 is the ideal choice for businesses seeking reliable and cost-effective solutions.

Perfectly suited for reverse osmosis systems processing seawater or brackish water, it is also an excellent fit for industrial applications requiring high pressure and continuous operation at minimal maintenance costs.

Features

Input Pressure:
0,5 - 5 barg (7,3 - 72,5 psig)
Maximum Outlet Pressure:
83 barg (1200 psig)
Minimum Outlet Pressure:
20 barg (290 psig)
Media Temperature:
2°C - 50°C (36°F - 122°F)
Ambient Temperature:
0°C - 50°C (32°F - 122°F)
Sound Pressure Level:
78 dB(A)
