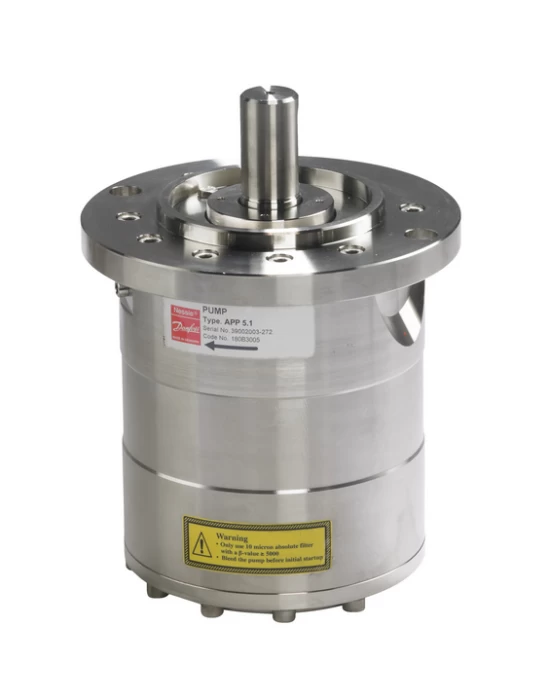

HIGH PRESSURE PUMP DANFOSS APP 5.1 - 180B3005

Geometric Displacement: 50.2 cm³/rev
Maximum Outlet Pressure: 83 barg (1200 psig)
Minimum Outlet Pressure: 20 barg (290 psig)
Inlet Pressure: 0.5 - 5 barg (7.3 - 72.5 psig)
Maximum Flow (at 1800 RPM): 22.13 gpm (5.02 m³/h)
Media Temperature: 2 - 50°C (35.6 - 122°F)
Ambient Temperature: 0 - 50°C (32 - 122°F)
Sound Pressure Level: 78 dB(A)

Code: 10.00016

Availability: Pre-order

/ Item

Wishlist

Compare products

Description

The Danfoss APP 5.1 - 180B3005 high-pressure pump is an advanced solution designed for reverse osmosis (RO) applications, delivering exceptional performance and reliability. With a geometric displacement of 50.2 cm³/rev, it ensures a stable and consistent flow rate in high-pressure systems.

The pump operates at a maximum outlet pressure of 83 barg (1200 psig), making it ideal for demanding desalination and water treatment applications. The inlet pressure ranges from 0.5 to 5 barg, allowing for flexibility across various operational environments.

Its compact and durable design enables operation within media temperatures from 2 to 50°C and ambient temperatures from 0 to 50°C, ensuring resilience in different working conditions. Moreover, the 78 dB(A) sound pressure level provides quieter operation compared to other high-pressure pumps.

Thanks to its highly efficient design, the APP 5.1 offers low energy consumption and minimal maintenance requirements, making it one of the most reliable and cost-effective choices in the market.

This pump is ideal for reverse osmosis systems treating seawater or brackish water, as well as industrial installations that require high pressure and continuous operation with minimal maintenance costs.
