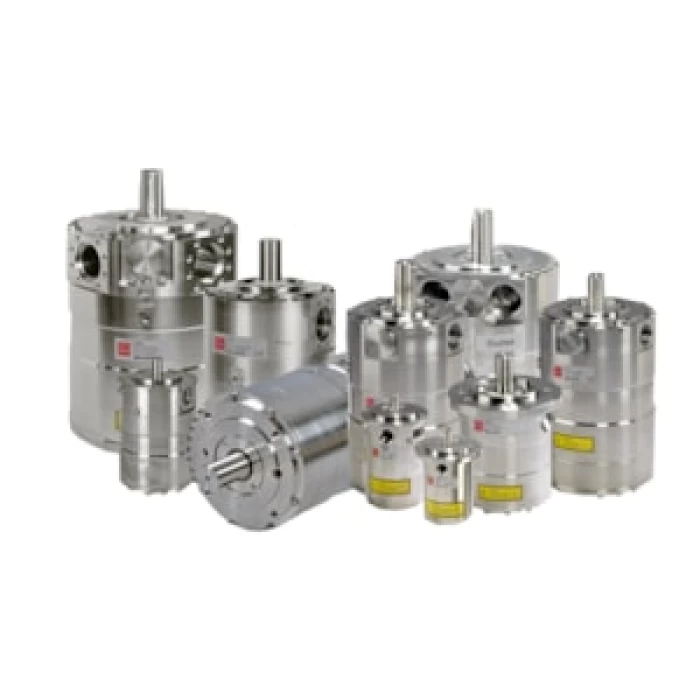

HIGH PRESSURE PUMP DANFOSS APP 3.5 - 180B3032

Geometric Displacement: 20.54 cm³/rev (1.25 in³/rev).
Maximum Outlet Pressure (Continuous): 83 barg (1200 psig).
Minimum Outlet Pressure: 20 barg (290 psig).
Inlet Pressure (Continuous): 0.5 - 5 barg (7.3 - 72.5 psig).
Maximum Flow:
- At 1000 rpm: 1.19 m³/h.
- At 1500 rpm: 1.79 m³/h.
Media Temperature: 2°C - 50°C (36°F - 122°F).
Ambient Temperature: 0°C - 50°C (32°F - 122°F).
Sound Pressure Level: 81 dB(A).

Code: 10.00006

Availability: Available

12045.12€

/ Item

Wishlist

Compare products

Description

The Danfoss APP 3.5 high-pressure pump is specifically designed for desalination and water treatment applications requiring high performance and reliability. With a geometric displacement of 20.54 cm³/rev and a maximum outlet pressure of 83 barg, this pump delivers consistent flow and exceptional efficiency under high-pressure conditions.

Its maximum flow rate reaches 1.79 m³/h at 1500 rpm, while the operating temperature range of 2°C to 50°C makes it suitable for a variety of environments. Its durable construction ensures long-lasting performance and reduced maintenance, while the sound pressure level of 81 dB(A) maintains quiet operation.

The Danfoss APP 3.5 pump is ideal for professional applications, offering reliability and efficiency even under the most demanding conditions.

Features

Input Pressure:: 0,5 - 5 barg (7,3 - 72,5 psig)

Max Flow Rate:: At 1.000 rpm: 1.190 Lt/h, At 1.500 rpm: 1.790 Lt/h

Geometric Displacement:: 20,54 cm³/rev (1,25 in³/rev)

Maximum Outlet Pressure:: 83 barg (1200 psig)

Minimum Outlet Pressure:: 20 barg (290 psig)

Media Temperature:: 2°C - 50°C (36°F - 122°F)

Ambient Temperature:: 0°C - 50°C (32°F - 122°F)

Sound Pressure Level:: 81 dB(A)

Files

DANFOSS/DANFOSS DATA SHEET APP 0.6-46.pdf DANFOSS/DANFOSS DISASSEMBLING AND ASSEMBLING APP 1.5 - 3.5.pdf
