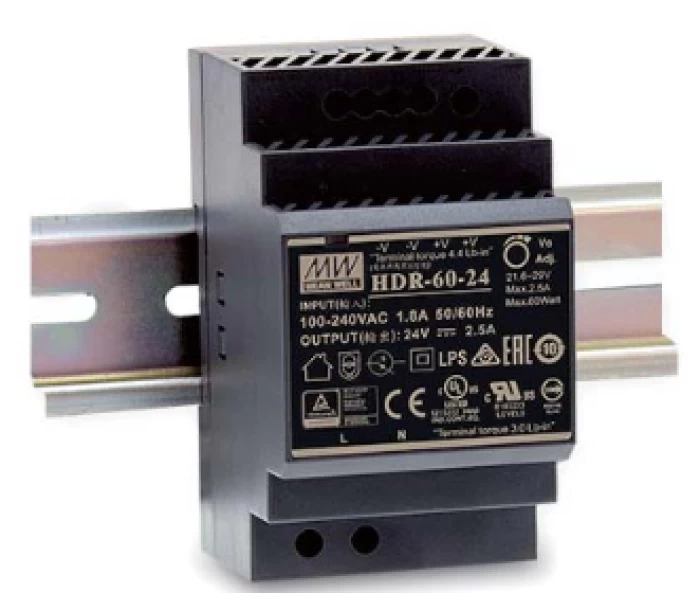

DIN RAIL POWER SUPPLY 60W/24VDC/2.5A ULTRA SLIM HDR-60-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 2.5A
Output Power: 60W
Input Voltage Range: 85–264VAC or 120–370VDC
Operational Range: up to 277VAC / 390VDC
Efficiency: up to 90%
AC Current (typical): 0.8A/230VAC
Inrush Current: 30A/115VAC
Protections:
Overload: 105–160% rated power (constant current limiting)
Overvoltage: 30–36V (shutdown, re-power to recover)
Operating Temperature: -30°C to +70°C
Operating Humidity: 20–90% RH (non-condensing)
Standby Power Losses: <1.5W
Dimensions: 52.5 x 90 x 54.5 mm (W x H x D)
Weight: 190g
Certifications: UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004, BIS IS13252
Mounting: DIN Rail TS-35/7.5 or TS-35/15
LED Power Indicator: Yes
Cooling: Free air convection
Item Specs

Code: 07.00011

Availability: Available

26.47€

/ Item

Wishlist

Compare products

Description

The HDR-60-24 by Mean Well is a slim and efficient 60W DIN rail power supply, ideal for industrial automation and low-power systems. It delivers 24V DC at 2.5A and accepts a wide input voltage range of 85–264VAC or 120–370VDC, with operational capability up to 277VAC. With up to 90% efficiency, it minimizes energy loss and heat. The unit includes overload and overvoltage protection, an LED power indicator, and passive cooling via free air convection. Certified to major international safety standards, the HDR-60-24 is designed for easy DIN rail mounting and operates reliably in temperatures ranging from -30°C to +70°C.
