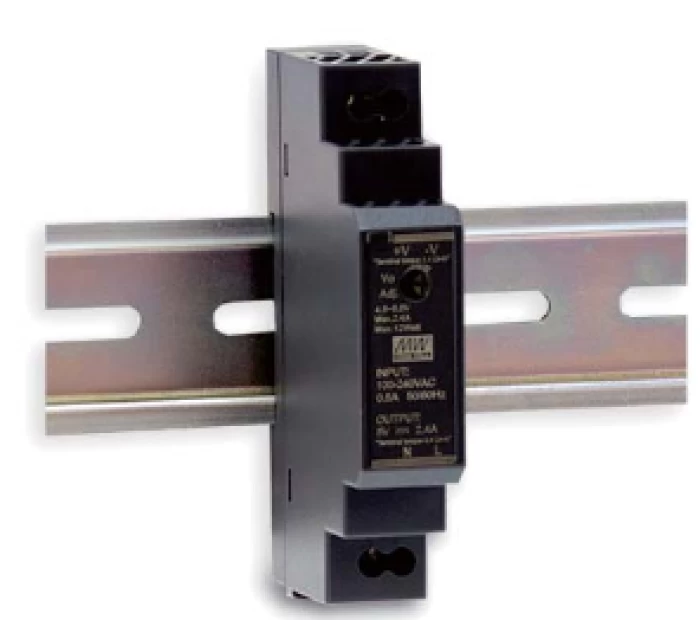

DIN RAIL POWER SUPPLY 15.2W/24VDC/0.63A ULTRA SLIM HDR-15-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 0.63A
Output Power: 15.2W
Input Voltage Range: 85–264V AC or 120–370V DC
Efficiency: up to 88%
Protections:
- Overload: 110–145% of rated power
- Overvoltage: 30–36V
Operating Temperature: -30°C to +70°C
Dimensions: 17.5 x 90 x 54.5 mm
Weight: 74g
Certifications: UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004
Technical specs

Code: 07.00013

Availability: Available

17.00€

/ Item

Wishlist

Compare products

Description

The Mean Well HDR-15-24 is an economical, ultra-slim 15W DIN rail power supply designed for installation on TS-35/7.5 or TS-35/15 mounting rails. It provides a 24V DC output voltage and 0.63A current, with a wide input voltage range from 85 to 264V AC or 120 to 370V DC. With efficiency up to 88%, it reduces energy consumption and heat generation. The unit includes overload and overvoltage protections, ensuring safe operation. Its compact dimensions (17.5 x 90 x 54.5 mm) and weight of 74g allow for easy installation in confined spaces. Certified with UL62368-1, UL508, and other international standards, it is ideal for industrial applications and automation systems.
