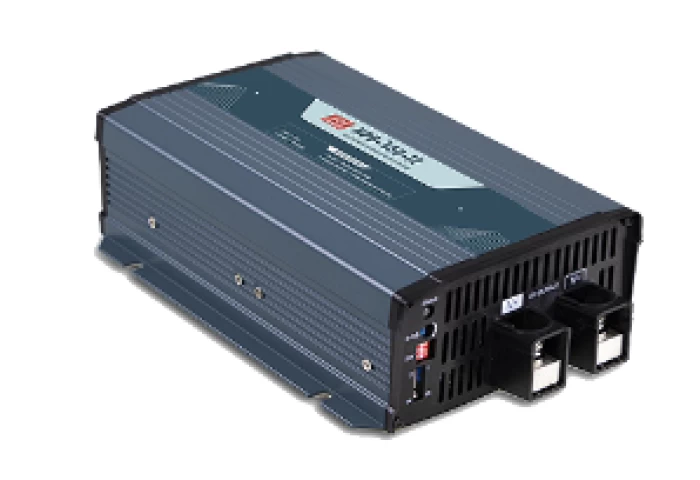

BATTERY CHARGER 24V/22.5A PFC NPB-750-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 22.5A
Output Power: 750W
Charging Voltage Range: 21 – 42V
Input Voltage: 90 – 264VAC
Efficiency: Up to 93%
2 Or 3-Stage Charging Selectable Via DIP Switch
Default Boost / Float Charging: 28.8V / 27.6V
Selectable Or Programmable Charging Curve (via SBP-001)
CANBus Communication For Remote Monitoring And Control
Protections: Short Circuit, Overvoltage, Overtemperature, Reverse Polarity
Operating Temperature: -30 to +70°C
Thermal Controlled Cooling Fan

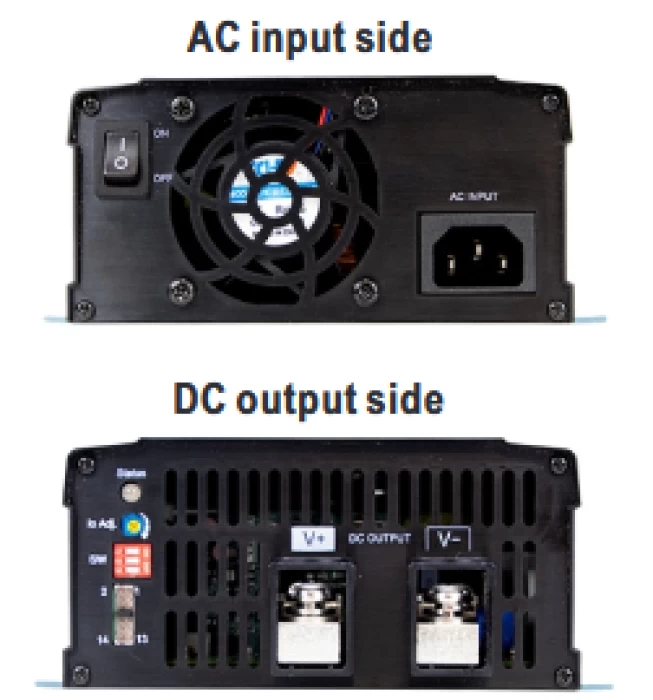

LED Indicators For Charging Status
Dimensions: 230 x 158 x 67 mm
Weight: 1.84kg
Compatible With Lead-Acid And Lithium Batteries
Technical Specs

Code: 07.16504

Availability: Available

273.39€

/ Item

Wishlist

Compare products

Description

The Mean Well NPB-750-24 is an intelligent 24V battery charger delivering up to 22.5A and 750W of power. With a wide charging range from 21V to 42V and high efficiency up to 93%, it features active power factor correction and supports both manual and programmable multi-stage charging curves. Default settings include a 28.8V boost and 27.6V float mode.

Compatible with lead-acid (AGM, GEL, flooded) and lithium batteries with BMS, it offers short circuit, overvoltage, overtemperature, and reverse polarity protections. CANBus communication enables full remote control and monitoring. The unit includes LED indicators for charging status, a temperature sensor for voltage compensation, and operates from -30°C to +70°C. Certified under IEC/UL62368-1 and EN60335-1/2-29, it is ideal for demanding industrial or mobile battery charging applications.

BATTERY CHARGER 24V/22.5A PFC NPB-750-24 MEAN WELL
