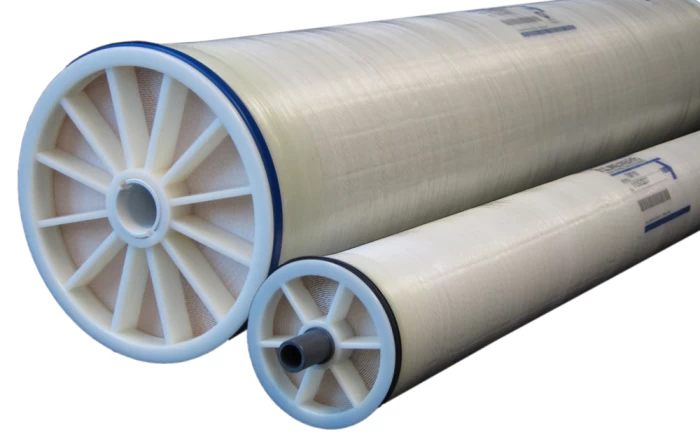

8inch BRACKISH WATER REVERSE OSMOSIS MEMBRANE TORAY SERIES TMG(D) (Low Pressure)-TMG20D-400

Compatibility: The Magnum Connection System 1.5" PVC D.50 mm is suitable for use with the VALVE MAGNUM 1.5 298/762 36 (30 GPM) NHB SYMBOL 12/230V 50HZ EURO PLUG (02.00010) and the VALVE MAGNUM 1.5 298/742 30 (20 GPM) NHB SYMBOL 12/230V 50HZ EURO PLUG (02.00012), ensuring a secure and efficient connection to the filtration system.

• Product Type: Polyethylene tubing (LLDPE)
• Outer Diameter (O.D.): 12,7 mm
• Inner Diameter (I.D.): 9,52 mm
• Roll Length: 100 meters
• Color: Red
• Material: Linear Low-Density Polyethylene (LLDPE)
• Maximum Operating Pressure: 230 PSI
• Temperature Range: -29°C to +66°C
• Applications: Water treatment, ice makers, misting systems, food contact.

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 4 inches
• Membrane Area: 87 ft² (8 m²)
• Nominal Salt Rejection: 99.3%
• Minimum Salt Rejection: 99.0%
• Product Flow Rate: 2,400 GPD (9.1 m³/day)
• Minimum Product Flow Rate: 1,900 GPD (7.2 m³/day)
• Feed Spacer Thickness: 34 mil
• Applications: Municipal drinking water, industrial process water, water reuse

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 8 inches
• Membrane Area: 440 ft² (41 m²)
• Nominal Salt Rejection: 99.8%
• Minimum Salt Rejection: 99.65%
• Product Flow Rate: 12,100 GPD (45.8 m³/day)
• Minimum Product Flow Rate: 9,800 GPD (37.0 m³/day)
• Feed Spacer Thickness: 28 mil
• Applications: Municipal drinking water, industrial process water, water reuse

• Product Type: Polyethylene tubing (LLDPE)
• Outer Diameter (O.D.): 6,35 mm
• Inner Diameter (I.D.): 4,32 mm
• Roll Length: 100 meters
• Color: Natural
• Material: Linear Low-Density Polyethylene (LLDPE)
• Maximum Operating Pressure: 230 PSI
• Temperature Range: -29°C to +66°C
• Applications: Water treatment, ice makers, misting systems, food contact.

Filtration Degree: 0,5μm
Capacity: 23.000 Lt
Flow rate: 400 Lt/h
Temperature range: 6 / 38° C
Μax pressure: 8 bar
Μaximum Duration: 1 year after installation
