8inch BRACKISH WATER REVERSE OSMOSIS MEMBRANE NITTO SERIES ESPA2 (optimum salt rejection and permeate flows)-ESPA2-LD MAX

  • Product Type: Brackish water reverse osmosis membrane
  • Diameter: 8 inches
  • Membrane Area: 440 ft² (40.9 m²)
  • Nominal Salt Rejection: 99.6% (minimum 99.5%)
  • Product Flow Rate: 12,000 GPD (45.4 m³/day)
  • Operating Pressure: 150 psi (1.03 MPa)
  • Feed Spacer Thickness: 34 mil (0.864 mm)
  • Applications: Drinking water treatment, industrial process waters, municipal and industrial wastewater recovery and reuse
Code: 120.00007
Availability: Pre-order
/ Item

Share

Description

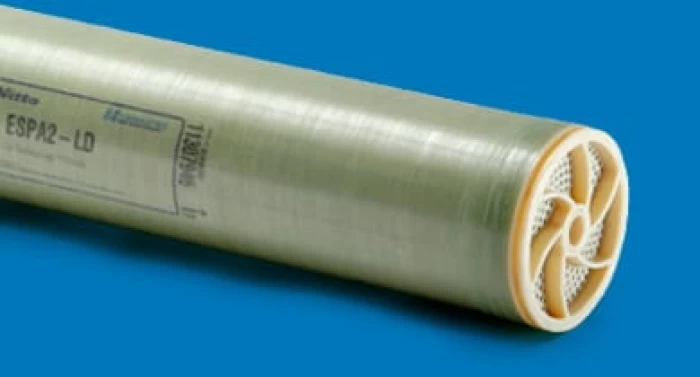

The ESPA2-LD MAX membrane from Hydranautics is part of the ESPA (Energy Saving Polyamide) series, combining energy-saving properties with Low Fouling Technology. The LD technology employs proprietary feed spacers that reduce biological growth and colloidal fouling, allowing for longer intervals between cleanings and maintaining low feed pressures. With an increased membrane area of 440 ft², the ESPA2-LD MAX offers higher permeate flow, reducing capital costs by requiring fewer pressure vessels and less floor space.

Features

Flow:
12.000 GPD (45,4 m³/ημέρα)
Rejection:
99,6%
Function Pressure:
150 psi (1,03 MPa)
Diameter:
8"
Membrane Surface:
440 ft² (41 m²)
