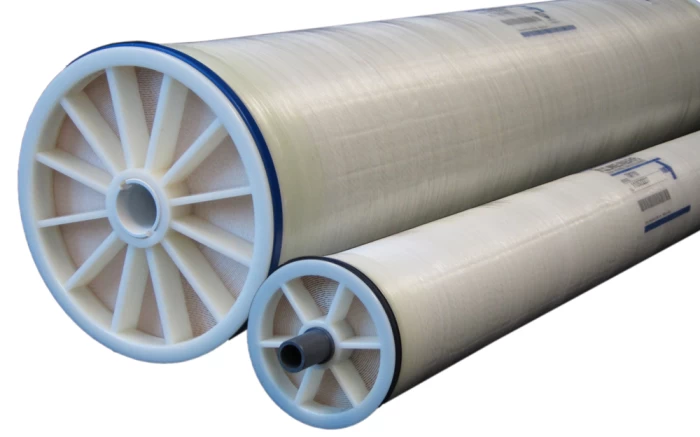

4inch BRACKISH WATER REVERSE OSMOSIS MEMBRANE TORAY SERIES TM700D (High Rejection)-TM710D

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 8 inches
• Membrane Area: 440 ft² (40.9 m²)
• Nominal Salt Rejection: 99.2% (minimum 99.0%)
• Product Flow Rate: 13,200 GPD (50 m³/day)
• Operating Pressure: 100 psi (0.69 MPa)
• Maximum Allowable Pressure: 600 psi (4.14 MPa)
• Feed Spacer Thickness: 28 mil (0.71 mm)
• Applications: Drinking water treatment, industrial process waters, municipal and industrial wastewater recovery and reuse

The Micro Switch for Magnum 700 5A P/N 3019469 is suitable for use with water filtration systems corresponding to product codes 02.00010 and 02.00012, ensuring reliable operation and easy replacement of the existing switch.

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 8 inches
• Membrane Area: 400 ft² (37.2 m²)
• Nominal Salt Rejection: 99.2% (minimum 99.0%)
• Product Flow Rate: 11,000 GPD (41.6 m³/day)
• Operating Pressure: 100 psi (0.69 MPa)
• Maximum Allowable Pressure: 1,200 psi (8.27 MPa)
• Feed Spacer Thickness: 34 mil (0.86 mm)
• Applications: Maple sap concentration, brackish water treatment, industrial processes

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 8 inches
• Membrane Area: 400 ft² (37.2 m²)
• Nominal Salt Rejection: 99.2%
• Product Flow Rate: 12,000 GPD (45.4 m³/day)
• Operating Pressure: 100 psi (0,7 MPa)
• Feed Spacer Thickness: 34 mil (0.864 mm)
• Applications: Drinking water treatment, industrial process waters, municipal and industrial wastewater recovery and reuse

• Material: Chemically resistant PVC-U.
• IN/OUT Connection: DN50 / D. 63 mm.
• Filter Capacity: 5 DOE cartridges, size 2.5" x 20".
• Water Capacity: 20.6 liters.
• Nominal Flow Rate: 300 lpm.
• Max Operating Pressure: 6 bar @ 25°C.
• Max Pressure Drop (Δp): 1.4 bar.
• Operating Temperature: 5 to 40°C.
• Compatibility: Supports 20" DOE cartridges.
• Additional Equipment: Includes air valve and pressure gauge.
• Dimensions: Height 715 mm, Diameter 225 mm.
• Weight: 11 kg.

• Product Type: Brackish water reverse osmosis membrane
• Diameter: 8 inches
• Membrane Area: 440 ft² (41 m²)
• Nominal Salt Rejection: 99.7%
• Minimum Salt Rejection: 99.5%
• Product Flow Rate: 13,300 GPD (50.3 m³/day)
• Minimum Product Flow Rate: 11,200 GPD (42.4 m³/day)
• Feed Spacer Thickness: 28 mil
• Applications: Municipal drinking water, industrial process water, water reuse
