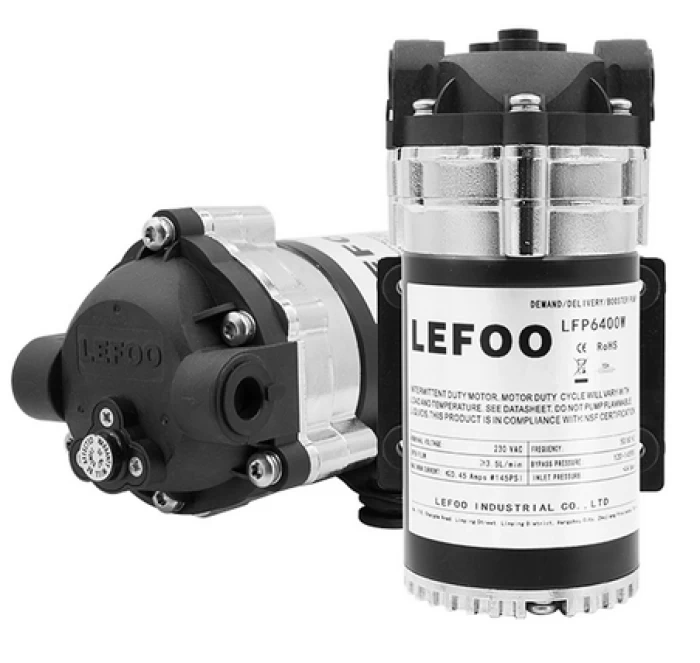

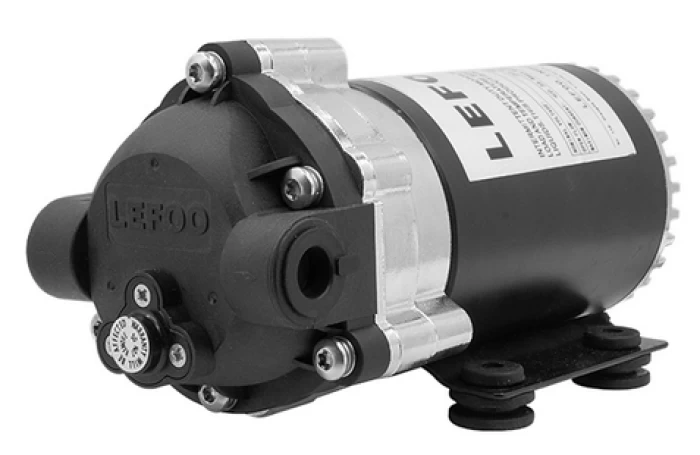

230VAC DIAPHRAGM BOOSTER PUMP LFP6600WD

Voltage: 230V AC
Connection: 3/8" NPT
Inlet pressure: 0.2 MPa
Outlet pressure: 0.5 MPa
Operating flow: ≥3,200 ml/min
Maximum flow: ≥4,200 ml/min
Maximum current: ≤0.57 A
Bypass pressure: 0.85–1.0 MPa
Certifications: ROHS, CE, CQC, REACH

Code: 198.00002

Availability: Available

235.40€

/ Item

Wishlist

Compare products

Description

The LFP6600WD is a 230V AC diaphragm booster pump featuring a compact design, making it ideal for applications with limited space, such as coffee machines, sparkling water machines, and water purification systems. It delivers a stable outlet pressure of 0.5 MPa with an operating flow of at least 3,200 ml/min, ensuring efficient and reliable performance. The pump includes protections against overload, overvoltage, undervoltage, overheating, and blockage, and complies with international safety and environmental standards, including ROHS, CE, CQC, and REACH. Its compact size allows for easy installation in equipment with restricted space for water pumps.

Features

Flow:: 3,2 Lt/min

Input Pressure:: 0,2 MPa

Power Supply:: 230 VAC

Connection:: 3/8"

Max Flow Rate:: 4,2 Lt/min
