Miscellaneous Fluid fit Components

• Thread Diameter: 1/2".
• Material: High-quality brass.
• Shape: Cylindrical for secure pipe connections.
• Usage: Connection of pipes and fittings with female threads.
• Durability: High resistance to corrosion and mechanical stress.

Two-sided shelf for open-type cabinets and wall-mounted cabinets with a depth of 60

• Product Type: Rotary actuator for ball valves
• Torque: 20 Nm
• Nominal Voltage: AC/DC 24 V
• Control: On/Off, 3-point
• Running Time: 90 s for 90°
• Protection Class: IP54
• Supply/Control Connection: Cable 1 m, 3x 0.75 mm²
• Ambient Temperature: -30...50°C
• Power Consumption in Operation: 2.5 W
• Power Consumption in Rest Position: 0.2 W
• Power Consumption for Wire Sizing: 5.5 VA
• Manual Override: With push-button, lockable
• Position Indicator: Mechanical, integrated, two-section
• Flange Connection Compatibility: F05
• Certifications: CE according to 2014/30/EU, 2014/35/EU; cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
• Valve Compatibility: Ball valves and butterfly valves

• Filter Length: 20 inches (508 mm).
• Connection Diameter: 3/4" BSP.
• Material:
  • Head made of reinforced polypropylene (blue color).
  • Bowl made of transparent PET.

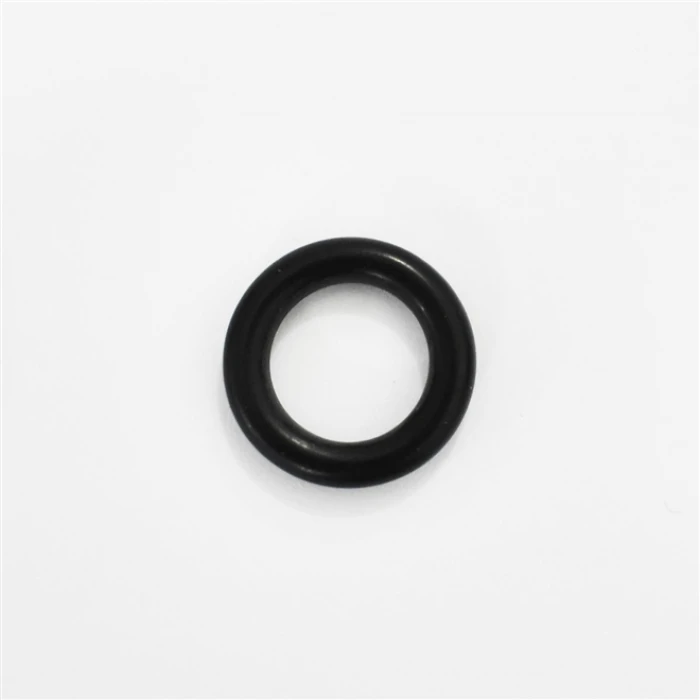

• Sealing: O-ring made of NBR.
• Maximum Operating Pressure: 8.6 bar.
• Operating Temperature Range: 4°C to 40°C.
• Additional Equipment: Air valve for decompression.

• Product Type: 4" membrane housing with end connections
• Maximum Pressure: 1000 PSI
• Material: Fiber Reinforced Plastic (FRP) with epoxy resin
• Connection Type: NPT ¾"
• Membrane Capacity: 3 membranes
• Applications: Reverse Osmosis (RO), Nanofiltration (NF), Ultrafiltration (UF)
