Filter Housings

• Filter Length: 20 inches (508 mm).
• Connection Diameter: 3/4" BSP.
• Material:
  • Head made of reinforced polypropylene (blue color).
  • Bowl made of transparent PET.
• Sealing: O-ring made of NBR.
• Maximum Operating Pressure: 8.6 bar.
• Operating Temperature Range: 4°C to 40°C.
• Additional Equipment: Air valve for decompression.

• Filter Length: 10 inches (254 mm).
• Material Construction:
  • Head: Reinforced nylon (grey color).
  • Bowl: Transparent PET or grey polypropylene.
• IN/OUT Connection: 3/4" BSP.
• Compatibility: Suitable for standard DOE cartridges with a length of 10".
• Maximum Operating Pressure: 8.6 bar.
• Temperature Range: 4°C to 80°C.
• Sealing: O-ring made of EPDM.
• Additional Equipment: Includes a pressure relief valve.

• Filter Length: 10 inches (252 mm).
• Outer Diameter: 70 mm.
• Material: High-strength plastic.
• Capacity: 0.6 liters.
• Compatibility: Suitable for filling with polyphosphate crystals, activated carbon, or resins.
• Operating Temperature: Up to 40°C.

• Filter Length: 10 inches (252 mm).
• Outer Diameter: 70 mm.
• Material: High-strength plastic.
• Capacity: 0.6 liters.
• Compatibility: Suitable for filling with polyphosphate crystals, activated carbon, or resins.
• Operating Temperature: Up to 40°C.

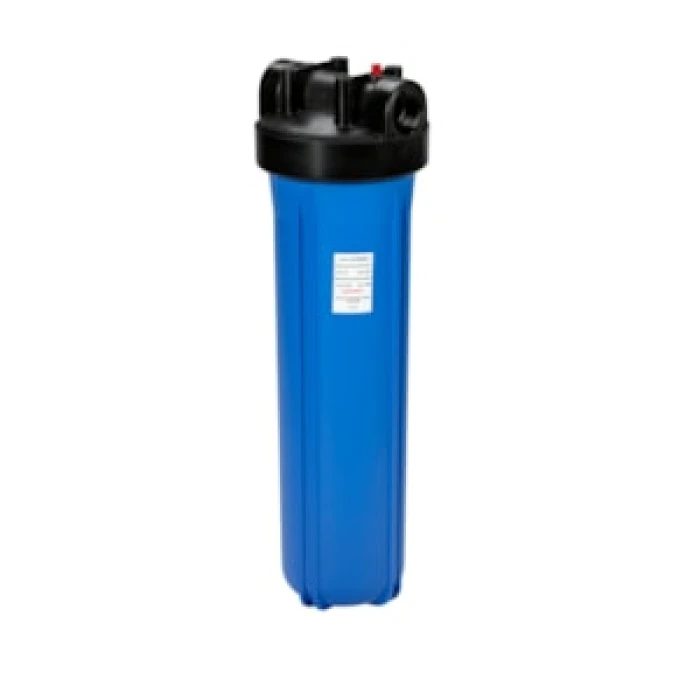

• Material Construction: Head made of reinforced polypropylene (blue color), sump made of blue polypropylene or transparent PET.
• IN/OUT Connection Size: 3/4" BSPP.
• Compatibility: DOE filters 20" length and 2.5" diameter.
• Maximum Operating Pressure: 8.6 bar.
• Operating Temperature Range: 4°C to 40°C.
• Sealing: O-ring made of NBR.
• Additional Equipment: Equipped with an air valve and comes with a plastic wrench for easy maintenance.

• Material: PVC-U for high chemical resistance
• IN/OUT Connections: Flanged DN50
• Maximum Operating Pressure: 7 bar @ 25°C
• Hydraulic Test Pressure: 9.1 bar
• Maximum Operating Temperature: 40°C
• Nominal Flow Rate: 300 Lt/min (LPM)
• Compatible Filters: Bag filters 7” x 32”
• Max ∆p: 1.0 bar
• Compliance: European Directive 2014/68/EU (PED)

• Material: Chemically resistant PVC-U.
• IN/OUT Connection: DN50 / D. 63 mm.
• Filter Capacity: 5 DOE cartridges, size 2.5" x 20".
• Water Capacity: 20.6 liters.
• Nominal Flow Rate: 300 lpm.
• Max Operating Pressure: 6 bar @ 25°C.
• Max Pressure Drop (Δp): 1.4 bar.
• Operating Temperature: 5 to 40°C.
• Compatibility: Supports 20" DOE cartridges.
• Additional Equipment: Includes air valve and pressure gauge.
• Dimensions: Height 715 mm, Diameter 225 mm.
• Weight: 11 kg.

• Product Type: BIG filter housing L=10'' - 1''
• Material: High-quality polypropylene
• Connection Dimensions IN/OUT: BSPP 1"
• Maximum Operating Pressure: Up to 6 bar
• Temperature Range: 4°C to 40°C
• Applications: Water filtration systems, industrial and commercial installations, equipment protection.

• Compatibility: High-flow cartridges with 4.5" diameter (DOE).
• Material Construction:Head and Nut: Polypropylene (PP).
• Bowl: Transparent PET or White Polypropylene.
• Sealing: O-ring in NBR.
• Equipment: Air valve, plastic wrench (FB9BGR11).
• Connections: IN/OUT BSPP 1 1/2".
• Maximum Operating Pressure: 6 bar.
• Temperature Range: 4°C to 40°C.

Note: Installation of a pressure reducer is recommended.

• Product Type: Structural Pressure Vessel 8x17 2.5'' blue
• Capacity: 11 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 208 mm
• Connection: 2.5"
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.

• Product Type: Structural Pressure Vessel 21x60 4'' blue
• Capacity: 307 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 552 mm
• Connection: 4''
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.

• Product Type: Structural Pressure Vessel 18x65 4'' blue
• Capacity: 250 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 469 mm
• Connection: 4''
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.

• Product Type: Structural Pressure Vessel 14x65 4'' blue
• Capacity: 140 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 369 mm
• Connection: 4''
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.

• Product Type: Structural Pressure Vessel 12x48 2.5'' blue
• Capacity: 76 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 304 mm
• Connection: 2.5"
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.

• Product Type: Structural Pressure Vessel 8x35 2.5'' blue
• Capacity: 25.7 liters
• Material: Fiberglass reinforced with epoxy resin
• External Diameter: 208 mm
• Connection: 2.5"
• Maximum Operating Pressure: 10 bar
• Temperature Range: Up to 50°C
• Applications: Industrial and potable water treatment systems.
